| Product Name: | Plug-in PLC Splitter | Wavelength: | 1260~1620nm |
|---|---|---|---|
| Type: | 1x8 | Package: | ABS Box |
| Connector: | LC/SC/FC/ST (PC or APC) | Application: | LAN and CATV System |
| High Light: | fiber optic plc splitter,fiber optic cable splitter |
||

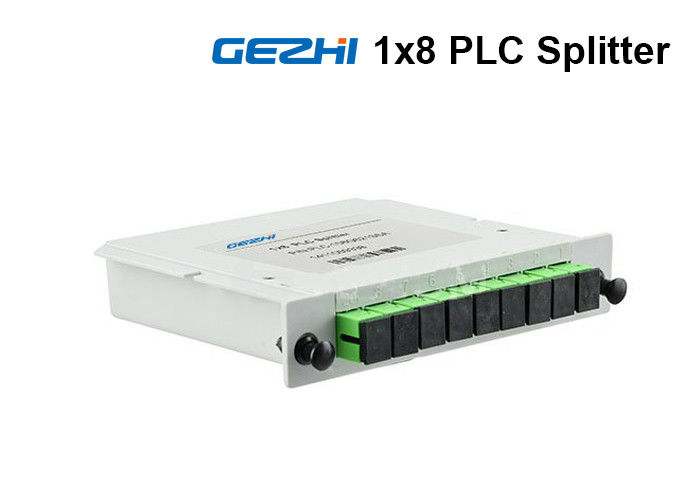

1 input and 8 output fibers with an even split ratio, SC/APC
GEZHI PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI Photonics provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 ABS Box type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1x8 mini Plug-in PLC Splitter with compact structure and small volume, is easily placed in the case body, such as cable transfer box, wiring in corridor, distribution box, or joint closure with some space reserved.
GEZHI 1×8 Mini Plug-in Fiber PLC Splitter with Plastic ABS Box Package supports G.657A Fiber, 900μm, 2.0mm, 3.0mm input and output fiber, and SC, LC, FC & ST connectors for choice.
Features:
Application
1x8 PLC Splitter Module Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
| Operating Wavelength (nm) | 1260～1650 | |||||||
| Fiber Type | G657A1 or customer specified | |||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | |
| Polarization Dependent Loss(dB) Typical | 0.1 | 0.1 | 0.1 | 0.20 | 0.25 | 0.30 | 0.4 | |
| Polarization Dependent Loss(dB) Max. | 0.15 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | |
| Return Loss (dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
|
Temperature Stability (-40～85 ℃)(dB) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～80 | |||||||
| Storage Temperature (℃) | -40～85 | |||||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A | |
| Module Dimension (mm) | 100×80×10 | 120×80×18 | 141×115×18 | |||||
| Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A | |
 |
|
|
Package
|
Mechanical Drawing
|
|
|
